Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.
High quality digital stereo input and output via USB
Studio quality balanced analogue inputs & outputs
Individually switchable +48V phantom power
Supplied with USB lead for power and PC/Mac connection
Power supply5.5Vdc (USB)
USB computer interfaceDuplex stereo in/out AD/DA
OutputLeft + Right balanced XLR (analogue)
Phantom power+48V individually switchable (XLR inputs only)
Gain-14 to +40dB
EQ: low±15dB @ 80Hz
EQ: high±15dB @ 12kHz
Input impedance : mic2k Ohms
Input impedance : instrument1M Ohms
Input impedance : line20k Ohms
Frequency response20Hz - 20kHz (±0.5B)
Sampling format24-bit, 96kHz max.
THD +N<0.03% @ 1kHz
Dynamic range102dB
Crosstalk : stereo92dB
Output impedance120 Ohms

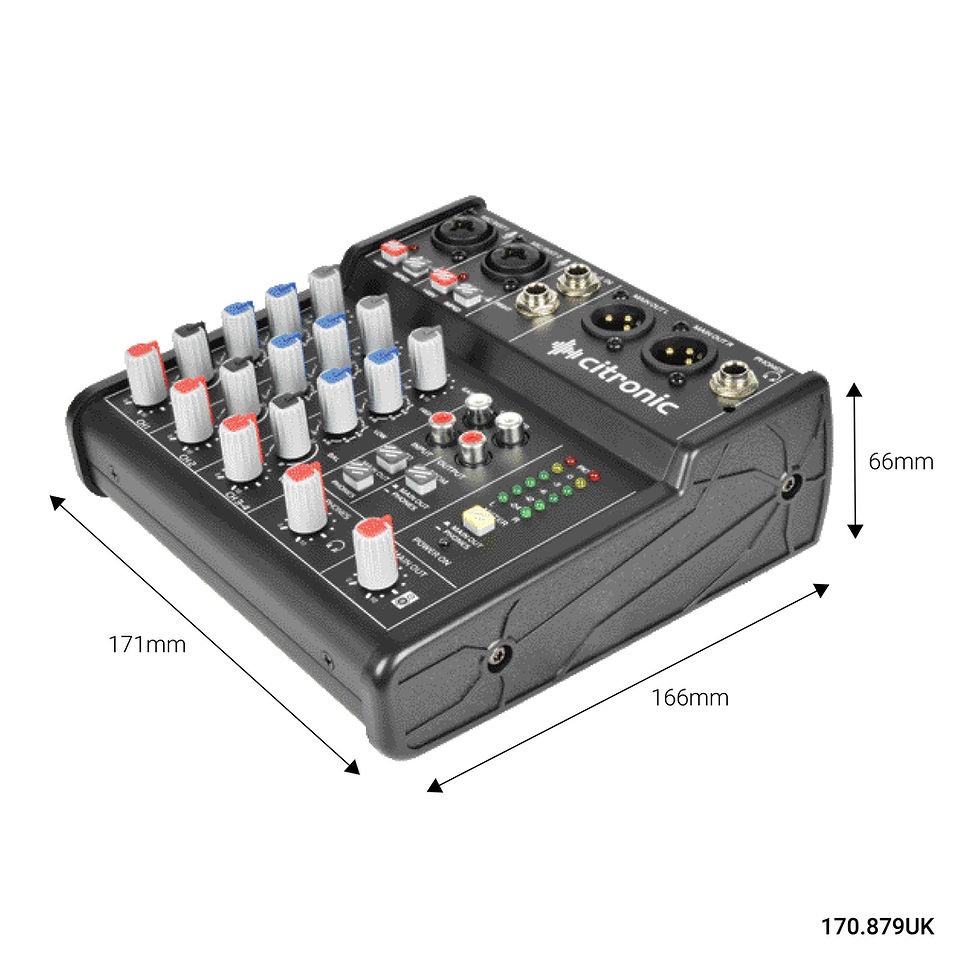

Dimensions171 x 166 x 66mm
Weight900g
