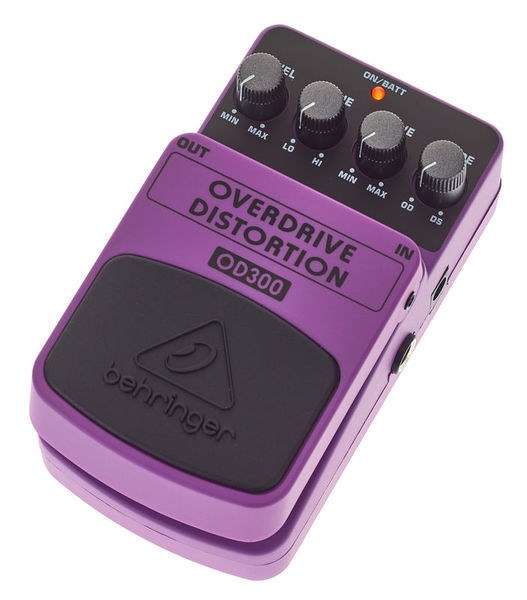

The Behringer OD300 lets you combine and balance overdrive and distortion to find your ultimate dirt tone. This is achieved thanks to clever design, inside are two separate circuits- 1 for overdrive and another for distortion (identical circuitry to a famous orange distortion pedal and yellow overdrive). The pedal then lets you blend these signals together with the added ability to tweak gain level and adjust tone for even more sonic adaptability. The end result is the most customisable dirt tone on the market.
Find your balance. The Behringer OD300 Overdrive Distortion Pedal is literally two-in-one and gives you unparalleled adaptability with your distortion. The signal is split into two paths-one for overdrive, one for distortion, these signals are processed separately with their different clipping methods and then summed before the tone control circuit. This gives you a rich tone wherever you set the 'Mode' while also giving you unrivalled sonic control from a single pedal.
Features
Play with overdrive, distortion or a combination of both in one compact pedal
Dedicated level, tone, drive & mode controls
Status LED for effect on/off & battery check
Operates on 9-volt battery or the Behringer PSU-SB 9V DC power supply (sold separately)
Electronic on/off switch for highest signal integrity in bypass mode
Specifications
Input
Connector: 1/4'' TS
Impedance: 500kΩ
Output
Connector: 1/4'' TS
Impedance: 1kΩ
Power Supply
USA/Canada: 120V, 60Hz
China/Korea: 220V, 50Hz
UK/Australia: 240V, 50Hz
Europe: 230V, 50Hz
Japan: 100V, 50/60Hz
Power Connector: 2 mm DC Jack, Negative Centre
Battery: 9V Type 6LR61
Power Consumption: 30 mA
Weight: 0.33 kg
Dimensions
Height: 54 mm
Width: 70 mm
Depth: 123 mm
